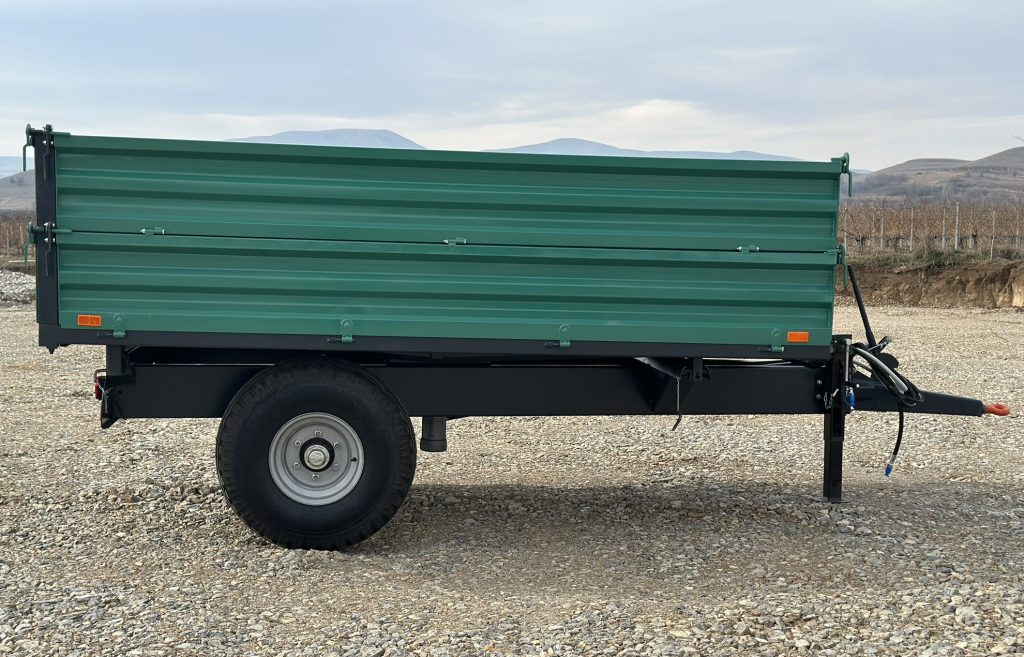

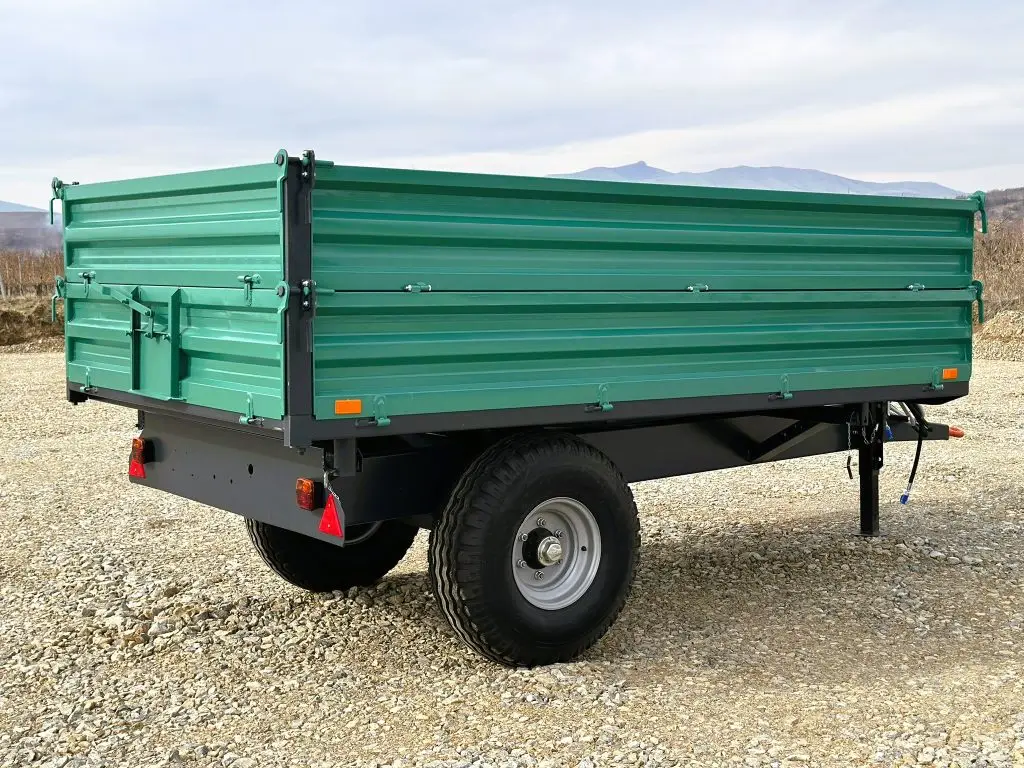

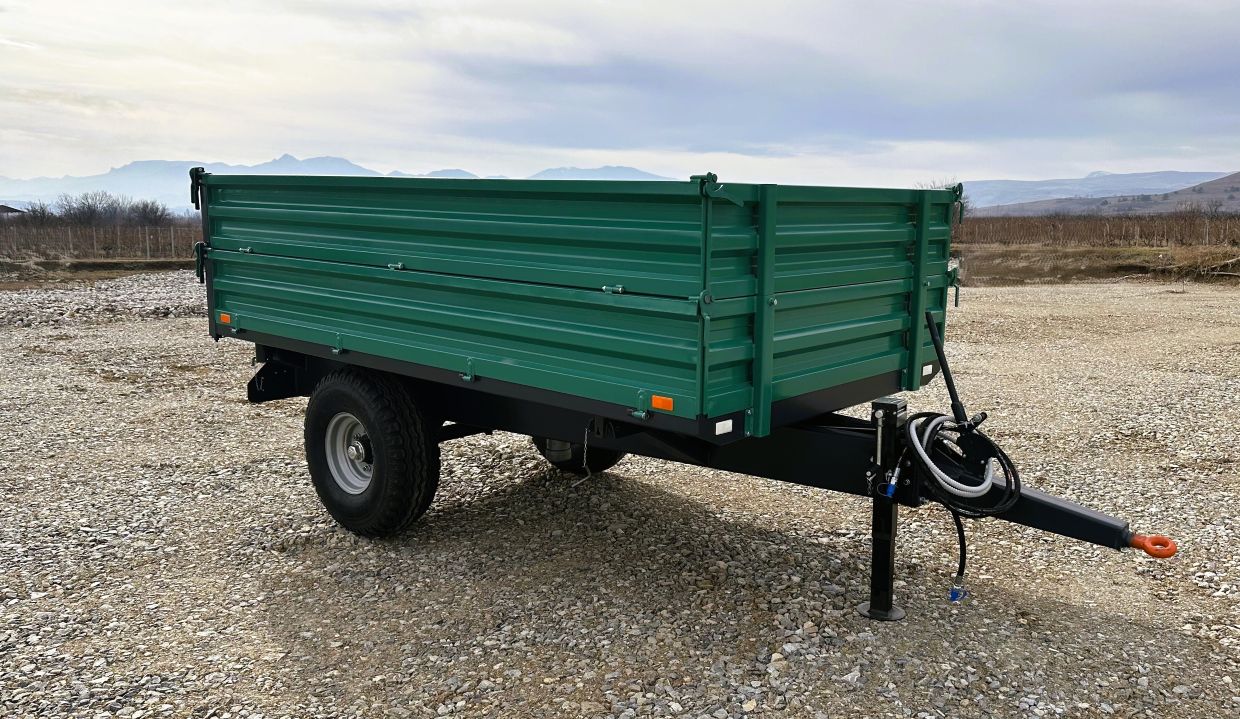

5T PRO
SINGLE-AXLE
AGRICULTURAL TRAILER
Reliable. Strong. Built for everyday work.
Payload
up to 5000 kg
Tipping
3-side
Brakes
Hydraulic / Air
Axle
Single axle
Options
Extensions, tires
PRODUCT DESCRIPTION
The 5T PRO trailer is designed for durability and efficiency in agricultural and rural applications. With robust construction and high-quality materials, it ensures safe transportation and long-lasting performance even in demanding working conditions.
✓Reinforced chassis for maximum strength
✓Reliable 3-side tipping system
✓High-quality steel construction
✓Easy maintenance and operation
TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS
| Models | 5T PRO |
|---|---|
| Cylinder lift (mm) | 1000 |
| Coupling height (mm) | 500 |
| Platform height (mm) | 995 |
| Sideboard height (mm) | 400+400 |
| Net weight (kg) | 1250 |
| Total width (mm) | 2100 |
| Gross weight (kg) | 6250 |
| Total length (mm) | 4830 |
| Sheet metal thickness (mm) | 4 |
| Tilt angle backwards (°) | 46 |
| Tilt angle lateral (°) | 45 |
| Platform size inside (mm) | 3430 x 1930 |
| Tires | 12.5/80-15.3 |
| Brakes | Hydraulic / Air |
Strong & Durable
Built with high-quality materials for long service life.
Reliable Performance
Engineered for stability and safe transport.
Easy Maintenance
Simple design for quick maintenance.
Dealer Support
Support and spare parts availability.
